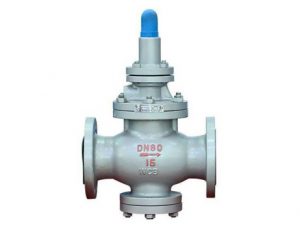

Marine Cast Steel Flanged Steam Pressure Reducing Valve

The marine cast steel flanged steam pressure reducing valve is GB/T1852-2008 standard.

  • Nominal diameter: DN25~200
  • Nominal working pressure: Inlet 0.4~2.5 MPa; Outlet 0.6~0.2; 1.2~0.6
  • For delivering steam(Temperature≤300℃) for vessel pipeline system

Material table of main parts:

Part NameMaterial
Valve body, upper cover, lower coverZG275-485
DiaphragmQSn6.5-0.1
Spring50CrVA
Adjust spring60Si2Mn
Valve plate2Cr13

CCS certified and GL, LR, DNV, BV, RLNA, ABS, NK, and KR certificates could be provided as per requirement.

Please feel free to send us an inquiry of our marine cast steel flanged steam pressure reducing valve.
