Our marine navigation light and lamp is A-2 class and applied to vessels of 50 meter or more in length for signal liaison at night.
I.Features and key characteristics
IMPA Code | Item | NO. of Light | Project Angle | Visibility (n.m) | Lamp Base | Bulb | Protection Class | Weight(KG) |
370421 | Masthead Light, Clear | Double | 225 | 6 | P-28S | 24V, 40W(60 cd) 110V, 60W(60 cd) 220V, 65W(60 cd) | IP56 | 5.1 |
370422 | Side Light, Green(Starboard) | Double | 112.5 | 3 | P-28S | 24V, 40W(60 cd) 110V, 60W(60 cd) 220V, 65W(60 cd) | IP56 | 5.3 |
370423 | Side Light, Red(Port) | Double | 112.5 | 3 | P-28S | 24V, 40W(60 cd) 110V, 60W(60 cd) 220V, 65W(60 cd) | IP56 | 5.3 |
370424 | Stern Light, Clear | Double | 135 | 3 | P-28S | 24V, 40W(60 cd) 110V, 60W(60 cd) 220V, 65W(60 cd) | IP56 | 5.4 |
370426 370427 370428 | White Light Red Light Green Light | Double Double Double | 360 360 360 | 3 3 3 | P-28S | 24V, 40W(60 cd) 110V, 60W(60 cd) 220V, 65W(60 cd) | IP56 | 4.9 |

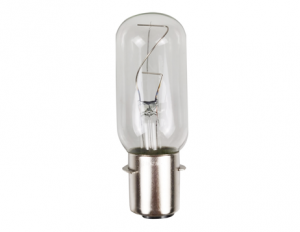

790449 790432 790434 | Navigation Lamp, Clear | / | / | / | P-28S | 24V, 40W(60 cd) 110V, 60W(60 cd) 220V, 65W(60 cd) | / | / |
II.Advantages and benefits
1. The upper and lower layers can be opened separately for convenient installation of bulbs;
2. The case is made of high-strength engineering plastic for corrosion and shock resistance;
3. The lens is made of high-strength polycarbonate for UV resistance and colour fastness;
4. It uses bulbs that have an average life of more than 700h;
5. It can normally work at a temperature from -30℃ to 50℃.
III.Product standard and certification
1. Conform to International Regulation for Preventing Collisions at Sea 1972;
2. Conform to IEC60598-1-2008;
3. Conform to performance standard of IMO Resolution MSC.253(83);
4. Conform to GB/T3028-2012;
5. Conform to Rules for Classification of Sea-going Steel Ships;
6. Certified by China Classification Society(CCS);
4. Certified by European Union(CE).
Please feel free to send us an inquiry for the marine navigation light and lamp.
