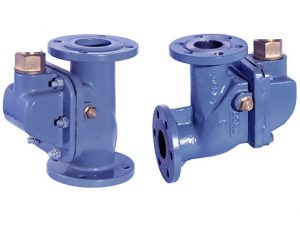

Marine Vertical Anti Wave Valve

The marine vertical anti wave valve is CB/T 3476-1992 standard.

  • Nominal diameter: DN50~150
  • Nominal working pressure: PN10(0.1MPa)
  • Liquid water, seawater and sewage water of vessel pipeline system.

Material table of main parts:

Part NameMaterial
Valve body, coverZG230-450, ZQSn10-2
Valve plate ZQSn10-2
Press plateHSn62-1
Seal gasket2040

CCS certified and GL, LR, DNV, BV, RLNA, ABS, NK, and KR certificates could be provided as per requirement.

Please feel free to send us an inquiry of our marine vertical anti wave valve.
