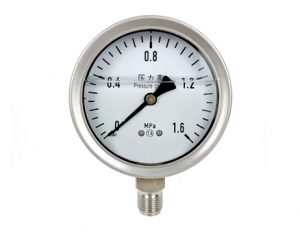

Pressure Gauge

The pressure gauge displays the pressure through the elastic deformation of the sensitive elements (Bourdon tube, diaphragm and sylphon bellow) in the instrument, and then the pressure deformation is transmitted to the pointer by the conversion mechanism of the movement in the gauge, causing the pointer to rotate.

I.Features and benefits

  • Display the pressure on-site for intuitive and convenient using
  • Safe and reliable with long service life
  • With a variety of structural forms for meeting different requirements

II.Key characteristics

  • Pressure range up to 100 MPa
  • Precision grade 1.0, 1.6, 2.5, 4.0

III.Applications
Liquid, gas

Please feel free to send us an inquire for the pressure gauge.
